The flatbed range is offered in width options ranging from 1.52m/5’ to 2.29m/7’6” and length options from 2.44m/8’ to 5.49m/18’.



The maximum gross weight for the LT model is 2000kg, whilst the heavier LM models offer between 2700kg and 3500kg.


The flatbed trailer range is normally supplied with twin axles. Tri-axle options are available on our LM6 series models in lengths over 12’.

Flatbed Range

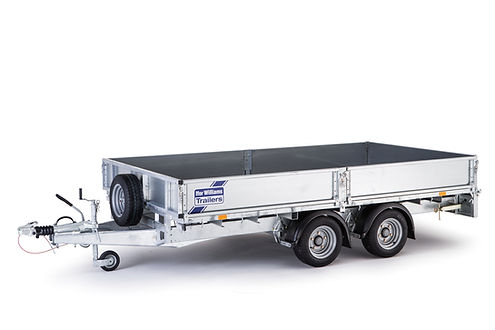

From the smallest LT85 to the largest LM208, all flatbed models are built around a welded steel, galvanized chassis fitted with bolt-on tapered drawbars and the Ifor Williams beam axle and leaf sprung suspension.

Whenever there’s work to be done you’ll find a flatbed model to help you do it. Our flatbed trailers epitomise the flexibility of our commercial range. Purchasers from roofers to gardeners, small businesses to local authorities have all found that this range of trailers can carry heavy or bulky loads with ease.



Tough, adaptable and easy to maintain, all models are fitted with a tough resin-coated plywood platform as standard. An option of aluminium treadplate covering is available, along with recessed lashing rings. Trailers can be further enhanced with accessories such as a headboard, ladder rack, dropsides or meshside extensions.



With the addition of a winch, rear propstands and either loading skids or the full-width ramp (1.83m/6’ in length), the versatile flatbed can be used to carry loads, such as small plant, ride-on mowers, mixers, shredders, rollers and a multitude of mobile plant equipment.

LT85 - 8’x 5’

LT105 - 10’x 5’

LT125 - 12’ x 5’

LT106 - 10’ x 6’

LT126 - 12’ x 6’

LT146 - 14’ x 6’



Maximum Gross Weight 2000kg



FINANCE AVAILABLE - PART EXCHANGE

LM85 - 8’x 5’

LM105 - 10’x 5’

LM125 - 12’ x 5’



Maximum Gross Weight 2700kg as standard.



3500kg HD Version available.



FINANCE AVAILABLE - PART EXCHANGE

LM106 - 10’x 6’

LM126 - 12’x 6’

LM146 - 14’ x 6’

LM166 - 16’ x 6’

LM186 - 18’ x 6’



Maximum Gross Weight 3500kg



Tri-axle version available on 12’, 14’, 16’ and 18’ models.



FINANCE AVAILABLE - PART EXCHANGE


LM127 - 12’x 7’

LM147 - 14’ x 7’

LM167 - 16’ x 7’

LM187 - 18’ x 7’



Maximum Gross Weight 3500kg



Tri-axle version available on 14’, 16’ and 18’ models.



FINANCE AVAILABLE - PART EXCHANGE
